F.8L Falco, N155BJ

For more information on this Falco, see Dave McMurray in the Falco Hangar.



FALCO N155BJ

ENGINE: LYCOMING 160 HP IO-320-BIA BY HIGH PERFORMANCE AIRCRAFT.

TOTAL HOURS: 359

INVERTED OIL SYSTEM
INVERTED 2 GAL. FUEL TANK
CAPEHART OIL FILTER

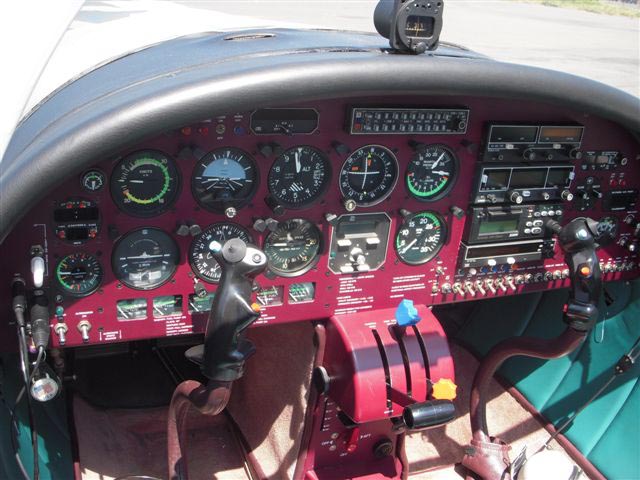

PANEL EQUIPMENT:

KING KMA 24 AUDIO PANEL
KING KX 165 NAV/COM WITH G.S.
KING KX125 NAV/COM (N.P.A.)
S-TEC 30 AUTOPILOT
TOMORROW FLYBUDDY GPS
KT79 TRANSPONDER
KM62 DME
SHADDIN FUEL FLOW TOTALIZER
ELECTRONICS INT. 4 CYL. DIGITAL CHT/EGT
ANTRON DIGITAL CLOCK
G-METER
DAVID CLARK INTERCOM
HARD WIRED SENNHEISER S.A. HEADSET

UPHOLSTERY: CUSTOM LEATHER, TEAL
AND BURGANDY SEATS,
REAR AND SIDE PANELS,
WITH SALMON CARPET.

EXTERIOR: WHITE, W/TEAL AND BURGANDY TRIM.

FALCO 155BJ, STARTED PROJECT 1985; COMPLETED JULY 1994.

ALWAYS KEPT IN A HEATED HANGAR FROM THE START.

LOCATED AND HANGARED AT EKA, EUREKA, CA.

AWARDS

SUN N' FUN 1995 BEST WOOD AIRPLANE

OSHKOSH 1995 RESERVE GRAND CHAMPION, KIT BUILT

ARLINGTION 1995 GRAND CHAMPION, PLANS BUILT

MODIFICATIONS

RAISED NUSTRINI CANOPY

LOWERED SEAT MOUNTS

CONCEALED CANOPY, CANOPY FAIRING FASTENERS

CONCEALED WINDSCREEN FASTENERS

EPOXY AND FIBERGLAS COVERING AT WINDSCREEN/ METAL TRIM TERMINATIONS AT FUSELAGE RING #4

RELOCATED BATTERY BOX

30% AIR INTAKE REDUCTION @ COWL

REBUILT NOSE TO FIT SPINNER/CLOSED GAP TO 2MM

DESIGNED, BUILT CLAMSHELL NOSE GEAR DOOR

REDUCED ALL CONTROL SURFACE GAPS

MODIFIED WING/FUSELAGE TRANSITION

MODIFIED GEAR-UP HEIGHT AT WHEEL WELLS

STAINLESS STEEL SCREWS

AND MORE.................

NOTES: 1995 PROP STRIKE AT ARLINGTON. TAXIED ONTO ROUGH TERRAIN, DISCOVERED THAT THE NOSE GEAR LOCK WAS INSUFFICIENT TO ABSORB BUMPS. I INSISTED THAT THE PROP AND CRANK BE REPLACED (NOT STRAIGHTENED.) COMPLETE ENGINE TEAR-DOWN AND RE-BUILD. COSMETIC DAMAGE TO COWL AND ONE GEAR DOOR.

CONTACT

DIAGNOSED PARKINSON'S DISEASE, THEREFORE MUST SELL.

Dave McMurray
Cell: (707) 496-4592
falco155bk@suddenlink.net
falco155dm@bendbroadband.com

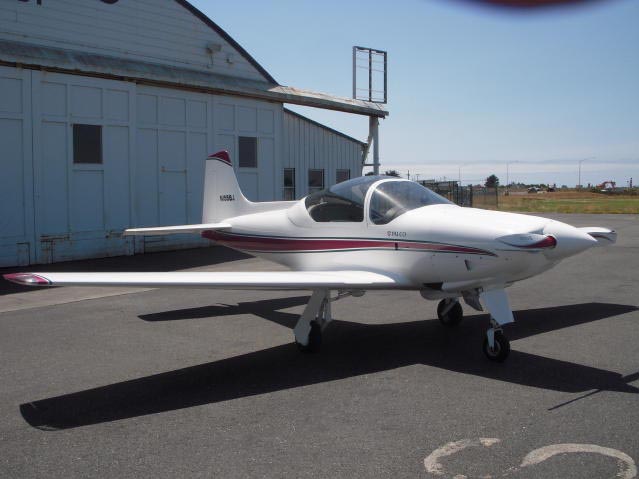

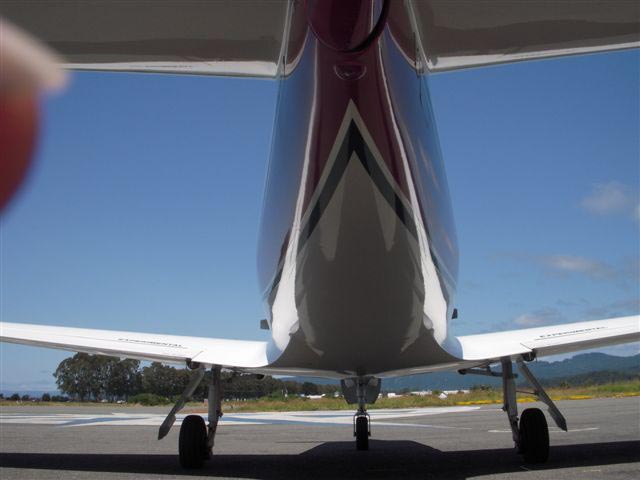

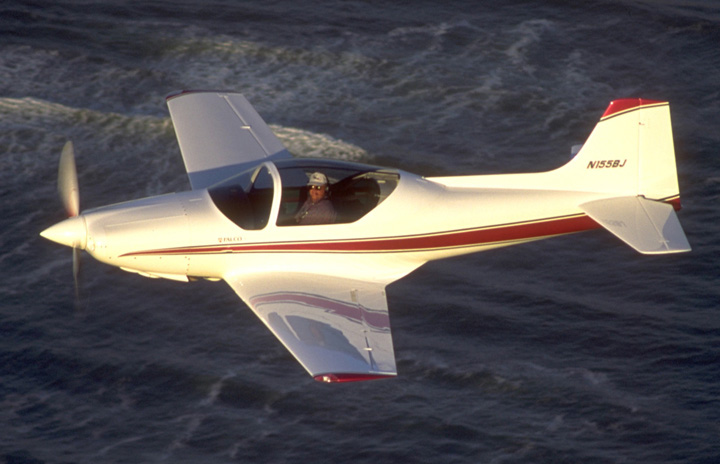

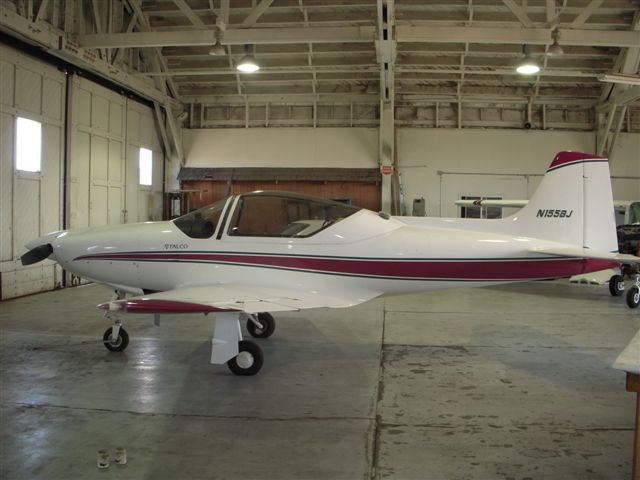

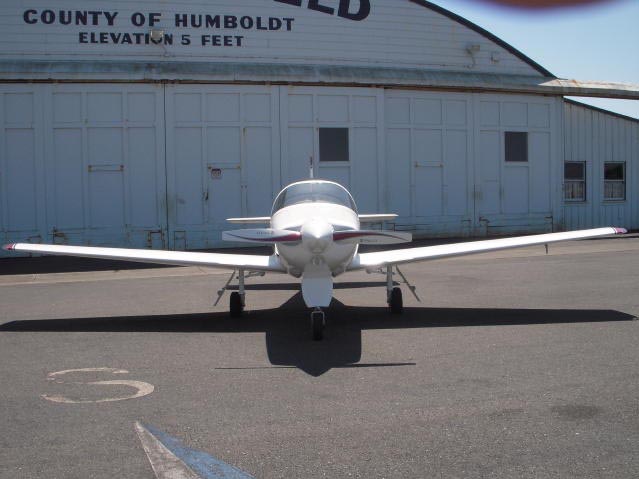

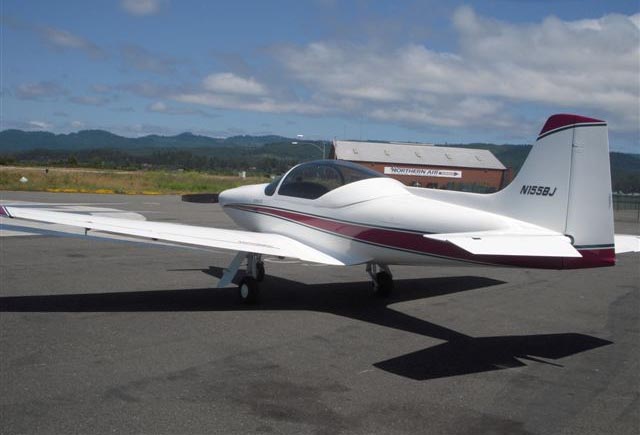

All of the photos of this size and below are current photos. The others, of smaller size, are old, but as you can see, it hasn't aged a bit.

Dave

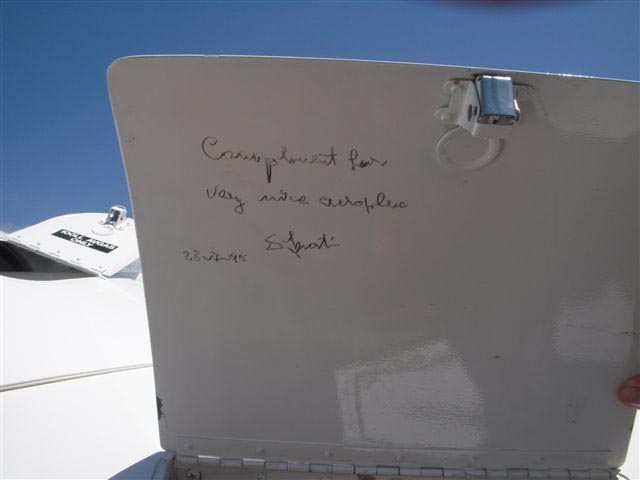

This is on the inside of the stowage door, from Stelio Frati. I forgot to mention that. It says "compliment for very nice aeroplane S Frati".

Dave

We just completed the annual, and complied with an AD that calendered out the prop hub. Kyle (Northern Air) said that as an "experimental" compliance is voluntary, but I didn't think that would be wise, so a new hub was installed. The old one looked fine.

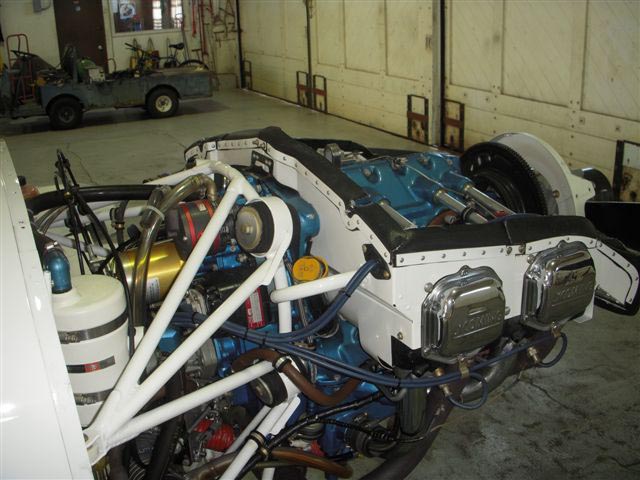

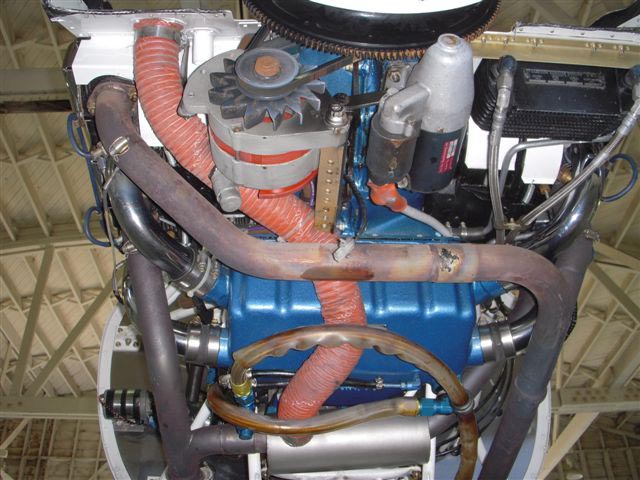

This picture shows the engine compartment as it looked a couple days ago, and reminded me that I powder-coated the mounts and baffles, as well as the instrument panel, and stick controls that include F-15 grips.

Dave
