Lag Screw Tool

Lag Screw Tool
This tool allows you to draw or place lag screws in side, end or 3D view.

The screw heads may be hex or square. You have the option of fixed or interactive length.

Drawing a lag screw


The tool now offers choices of TimberLOK and HeadLOK screws, which come in one size only but any length.

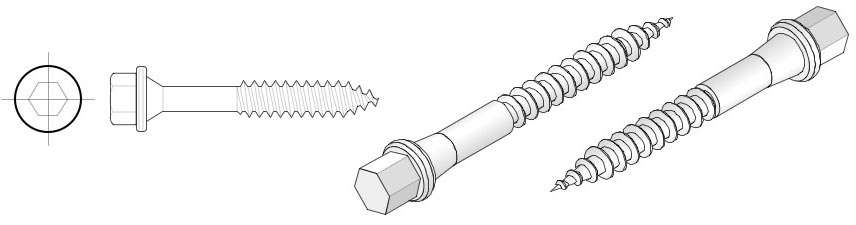

TimberLOK structural screws

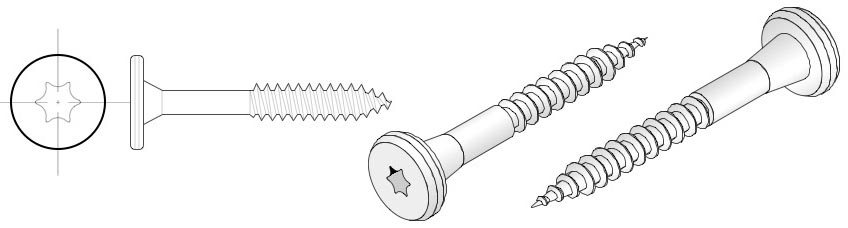

HeadLOK structural screws

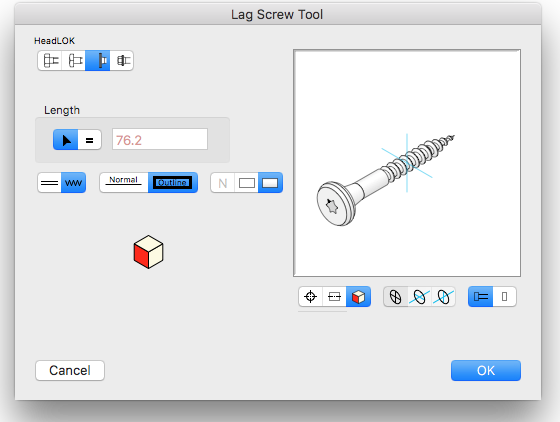

The 3D mode is the same except that it works in conjunction with WildTools 3D.

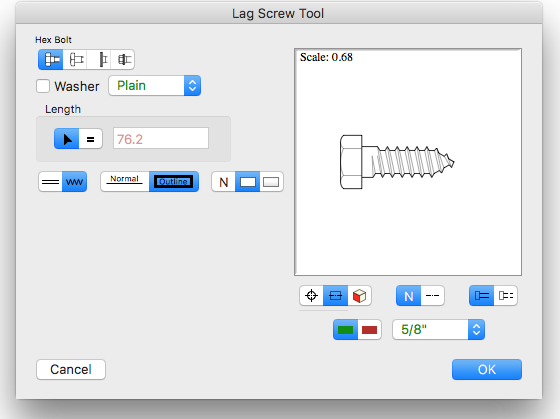

You set things up in the tool's dialog.

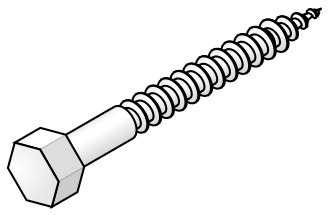

Then draw a 3D lag screw.
