Nut Tool



Nut Tool

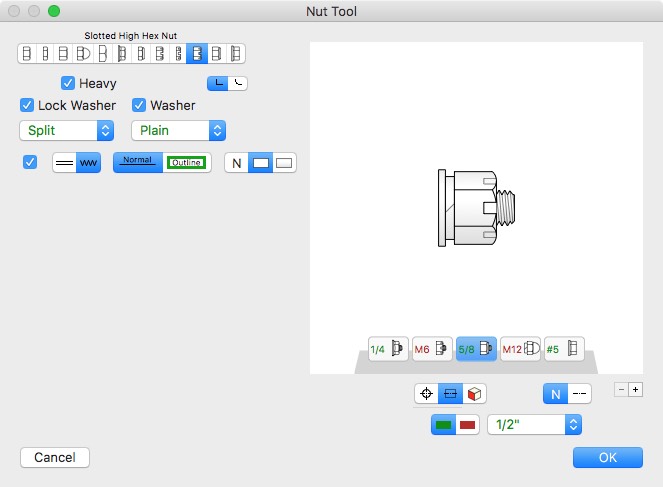

This tool allows you to draw a nut from the side or end view.

You have the option of many styles of nuts, including heavy nuts. In addition, you may have lock washers, washers and threads placed with the nuts.


Drawing a nut

Nut 3D Tool
This tool is the same except it works in conjunction with WildTools 3D.

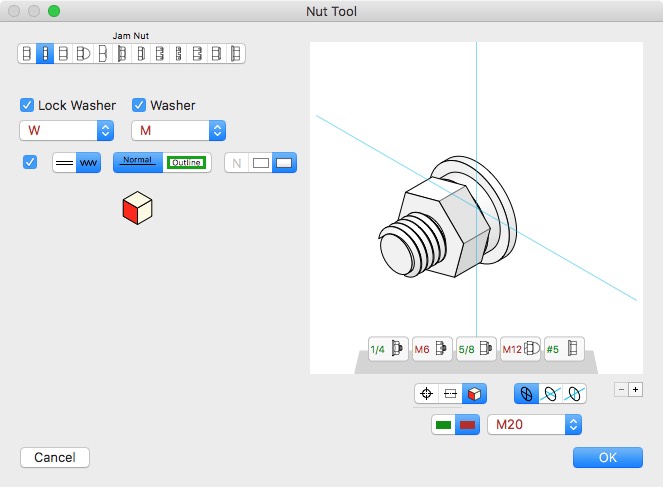

You set things up in the tool's dialog.

Then draw a 3D Nut.
