Sheet Metal Screw Tool



Sheet Metal Screw Tool

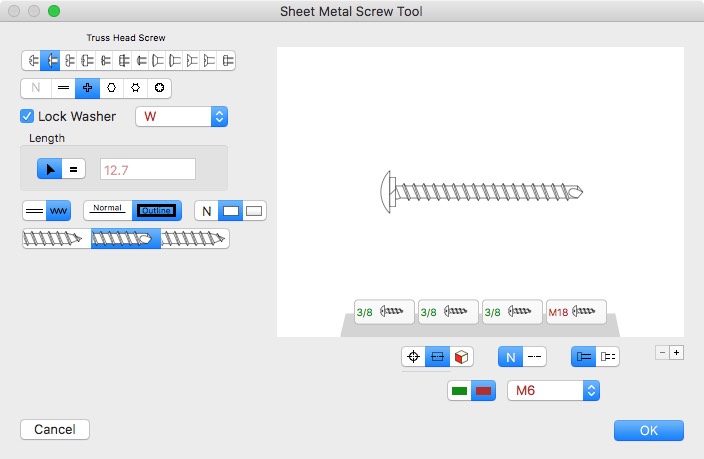

This tool allows you to draw or place sheet metal and wood screws in side or end view.

The tool is similar to the other screw tools except that you have a choice of fixed or interactive length, and three types of presentations for the threads.


Drawing a self-drilling sheet metal screw.

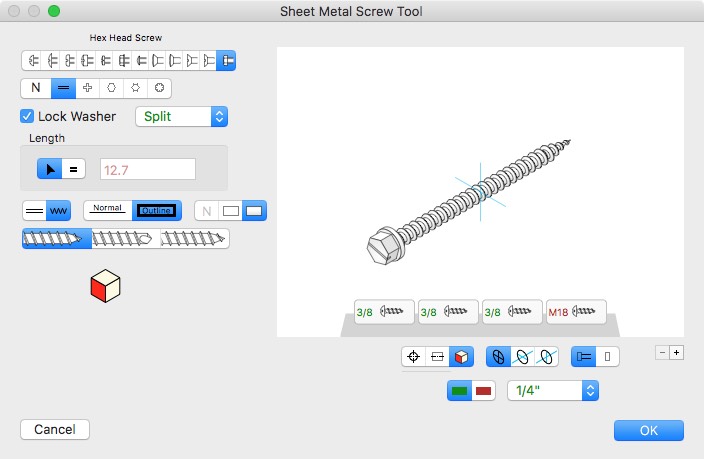

Sheet Metal Screw 3D Tool
This tool is the same except that it works in conjunction with WildTools 3D.

You set things up in the tool's dialog.

Then draw a 3D sheet metal screw.
