 Perspective Offset Line Tool
This is an offset line tool for perspectives. It operates in three-way
mode and in the current perspective plane.
Three-way offset in three-point perspective
In three-way mode, it is limited to a single offset in one
direction only. In the current perspective plane, you may have
multiple offsets, and you may press the Option key before clicking
on an object to offset in both directions.
 Perspective Line Extrude Tool
Same as Perspective Offset Line tool, but it will place a closed
four-sided polygon in the drawing.

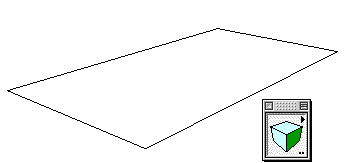

Extruding in three-point perspective
In parallel-offset mode, you can press the Shift key to get
a perspective square.
 Perspective Blend Line Tool
This tool allows you to blend two lines or sides of any rectangle
or polygons, even if in a group, in the current perspective plane.
Set the number of steps in the tool's dialog
To use the tool, click on an object in the drawing and drag
to the second object.

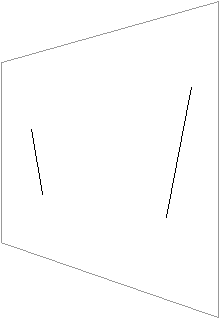

Blending two lines in perspective
 Perspective Bisector Line Tool
This tool operates in the same way as in WildTools except in the
current perspective plane.
Bisecting an angle in perspective
The angle is correctly calculated in the perspective plane.
 Perspective Pivot Line Tool
This tool operates in the same way as in WildTools except in the
current perspective plane.
Pivoting a line.
You may tab into the Edit Window to set the angle. |
