Gusset Plate Tool

Gusset Plate Tool
This tool allows you to draw gusset plates, a standard structural steel design.

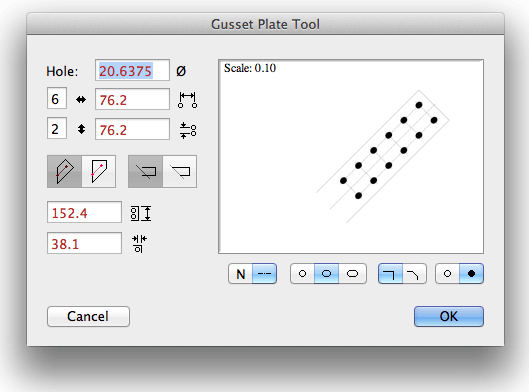

You have many choices in the tool's dialog.

Choose the hole diameter, number of rows of holes, hole spacing, etc. The holes may be circles or black-filled circles.

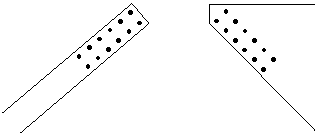

To draw a gusset plate, click and drag in the drawing.

The tool can also draw a trapesoidal shape plate.
