Welding Symbol Tool

Welding Symbol Tool
This tool allows you to place standard welding symbols in the drawing.

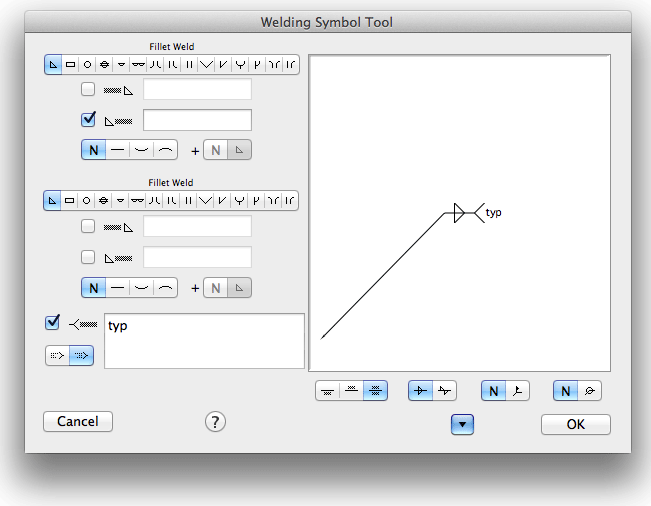

Select the behavior of the tool in the tool's dialog.

To draw with the tool, you click and drag.


Programmers Note. One of the problems with developing a tool like this has been dealing with engineers who get excited about this sort of thing. As you know from personal experience, an excited engineer is a terrible thing to see.
