Joel Shankle Assembly

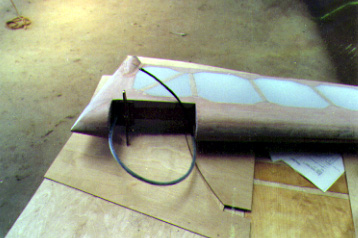

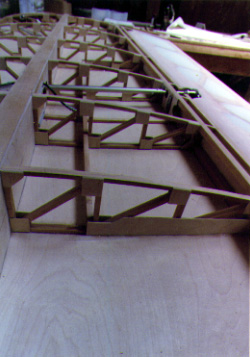

The nav antenna in the wing.

The wiring for the tail light and strobe.

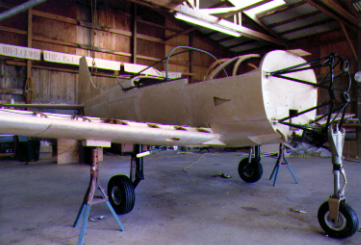

On the gear.

The bottom of the wing where it meets the fuselage.

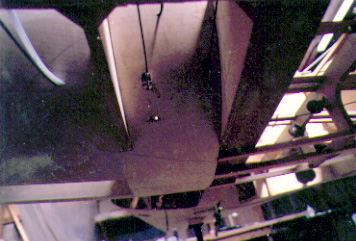

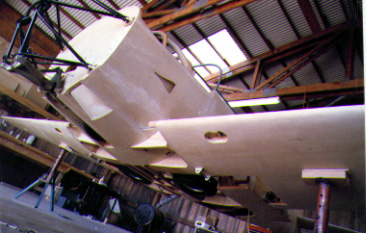

Looking up at the bottom of the plane. Note the landing gear retraction mechanism.

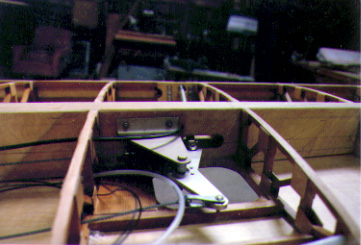

The aileron bellcrank and the pitot line.

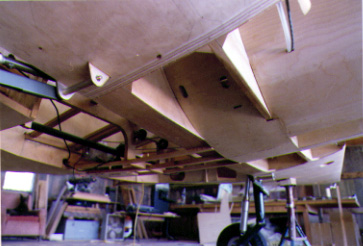

Here's the bottom of the fuselage, skinned between frames 3 and 4.

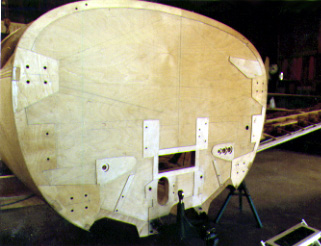

Plywood pads on the firewall frame--which is
covered with Fiberfrax insulation and stainless steel.
