Area Tool
This tool allows you to place text in the drawing for the height, width and area of a rectangular area or the area of an irregular 'flooded' part of the drawing.

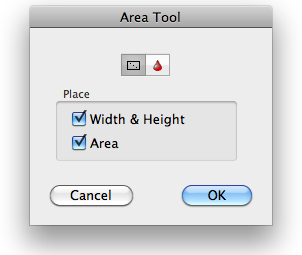

Set the behavior of the tool in the dialog:

To use the tool, draw a rectangle in the drawing.

The dimensions will be placed in the drawing.

To use the Area tool to flood part of the drawing, use the tool like the Flood tool.
