This tool allows you to draw or place bolts in side or end view.

Bolt heads may be hex, square, clevis or carriage. With the Bolt tool, you have the option of heavy nuts.


Drawing a bolt



Bolt 3D Tool

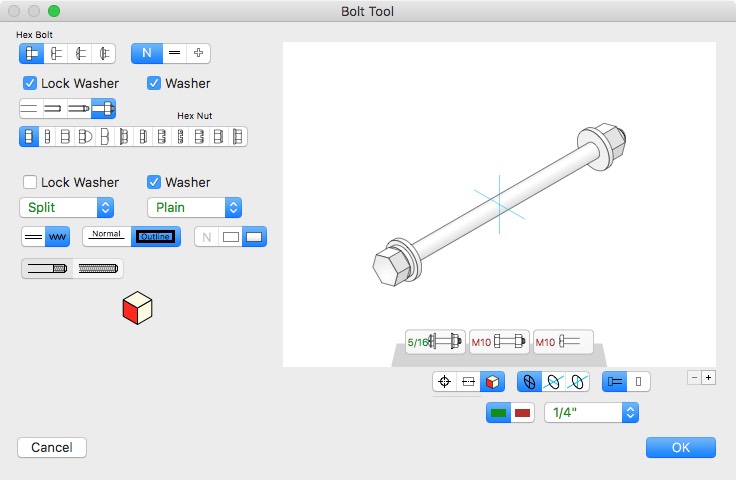

This tool is the same except that it works in conjunction with WildTools 3D.

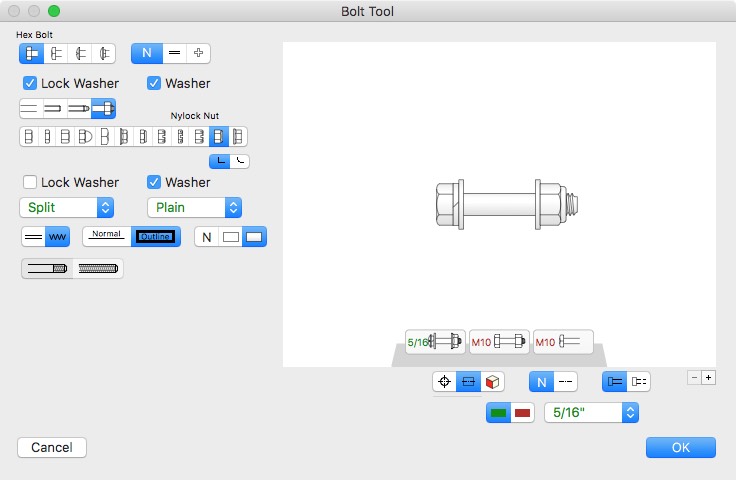

You set things up in the tool's dialog.

Then draw a 3D bolt.
