Cap Screw Tool



Cap Screw Tool
This tool allows you to draw or place cap screws in side or end view.

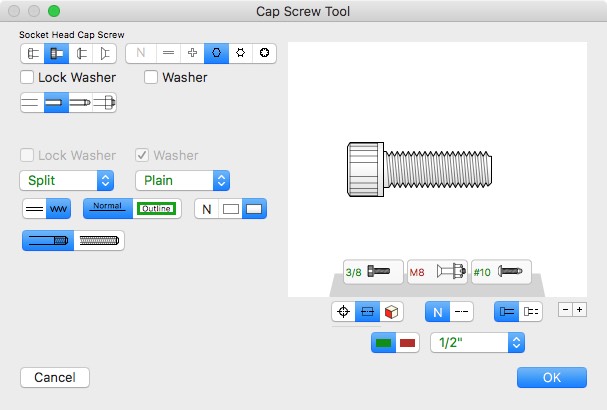

The tool is identical to the Screw tool in operation, except that you have four head styles for cap screws.


Drawing a flat head cap screw, with a tap drill, opaqued and outlined.



Cap Screw 3D Tool
This tool is the same except that it works in conjunction with WildTools 3D.

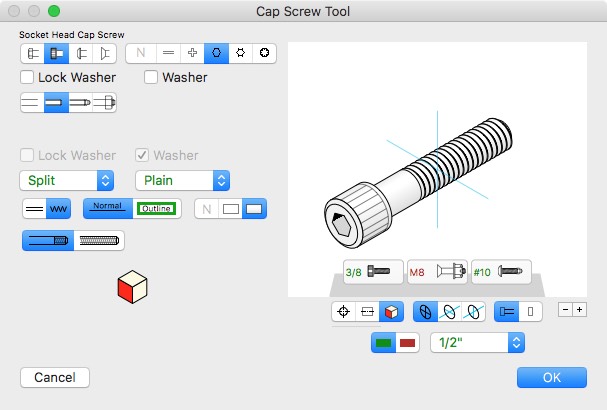

You set things up in the tool's dialog.

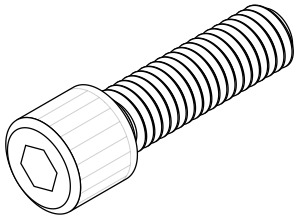

Then draw a 3D cap screw.
