Tapped Hole Tool

Tapped Hole Tool

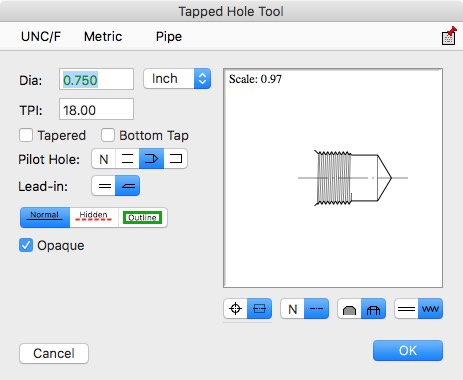

This tool allows you to draw tapped holes in the top and side views.

Select Opaque if you want the threads to cover up any objects behind. This is useful for showing a part in cross-section.

Click and drag to draw a tapped hole.

Standard depiction threads

Now let's get fancy, set the tool to Bottom Tap, Opaque, Outline and fully formed threads. This time we'll draw it against a colored background.

Opaque, outlined, fully formed threads
