Kit No. 811

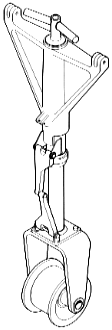

Nose Gear

All components for the installation of the nose gear strut.

This kit includes the upper and lower cylinders, trunnion, axle, axle nut, fork, lower ring nut, upper ring nut, trunnion bushings, piston bushings, piston guide and stop, upper and lower torque links, steering arm, strut valve, grease fittings, O-rings, wheel, and all required hardware. Tire and tube are not included.

The nose gear strut is an air/oil strut. The upper and lower cylinders are welded and machined from 4130 normalized steel. The lower cylinder is heat treated, and the hard chrome plating is ground. The trunnion is cast from 356-T6 aluminum and machined. The torque links are machined and alodined 2024-T3 aluminum. Other components are machined from 4130 normalized steel, 2024-T3 aluminum and SAE 660 bronze.
